10G DWDM OTN Transponder

10G DWDM Transponder for unified transport of 10Gbe LAN/WAN, OTU2/OTU2e, STM64/OC-192 and 8G/10G FC

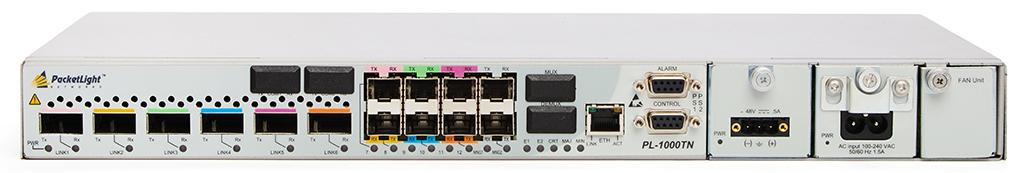

PacketLight’s PL-1000TN DWDM OTN transponder is designed for long distance, high-attenuation link budget, ROADM infrastructure with 10G connectivity for applications with a multi-protocol mix.

The PL-1000TN is a highly integrated 10G transponder for unified transport of different protocols such as 10G LAN, OTU2/OTU2e, STM64/OC-192 and 8G/10G Fibre Channel over common fiber optical network. The transponder meets market requirements for low power consumption and rack space savings, reducing overall solution CAPEX and OPEX.

Please contact us for a quote or further assistance.

Flexible Design

The PL-1000TN processes client protocols either by mapping non-OTN 8G-10G protocols over an OTN line, or by directly transponding OTN clients. The unit can be managed by HTTP/HTTPS web browsers, CLI over Telnet/SSH, PacketLight’s EMS, or third party SNMP system.

Powerful Feature Set

The PL-1000TN contains enhanced forward error correction (FEC) codes suitable for extremely long distances in amplified DWDM networks, eliminating the need for expensive regenerator sites and enabling an effective ROADM-based solution built on cascading a number of amplifiers across the infrastructure.

The unit provides a common transport layer for all client protocols regardless of the service type, with easy installation, management, and maintenance of the fiber optic infrastructure.

Key Advantage

Highly Integrated 10G OTN Product

Provides an entire DWDM solution over dual or single fiber in a 1U platform with two embedded EDFAs, mux and DCM.

Please contact us for a quote or further assistance.

PL-1000TN Connectivity

10G DWDM OTN Connection Diagram
  • 6 independent ITU G.Sup43 standard-based multi-rate 8/10G OTN transponders
  • Supported clients: 10G LAN, 8G/10G Fibre Channel (FC), STM64/OC192, and OTU2/2e
  • Three FEC types: ITU G.709 GFEC, G.975.1 I.4 and I.7 for enhanced performance
  • Supports full C-band tunable DWDM on line side optics
  • Supports multi-rate client interfaces over a common OTN infrastructure
  • 1+1 facility and optical switch line protection
  • Comprehensive performance monitoring and full OTN managed layer
  • Optional integrated EDFAs, DCM, mux/demux and optical switch modules
  • Remote management with in-band GCC or out-of-band optical supervisory channel (OSC)
  • Dual AC or DC pluggable power supply and pluggable fan unit
  • Cost-effective 1U platform with low power consumption, ideal for customer located equipment (CLE)
  • Supports standard MSA pluggable SFP+ (client) and XFP (uplink)
  • Operates on both single or dual fiber solutions
  • Building efficient DWDM OTN transport solutions for enterprises over common OTN long distance optical network
  • Building a robust packet optical network infrastructure
  • Multi-rate OTN transpodner for ROADM-based applications
  • Edge CPE device for end-to-end managed services over carrier OTN backbone
  • Upgrading SONET/SDH backbones to OTN backbones
  • OTU2/OTU2e OTN regenerator
  • Long haul connectivity for up to 52dB using a single 1U device
  • Unified transport of different protocols such as 10G LAN, STM64/OC-192 and 8G/10G Fibre Channel over common optical transport layer
  • Smallest integrated transport solution of its kind, saving rack space
  • Reduces cost of the backbone solution by cutting the number of required regenerators
  • High link budget of 52dB loss without the need for inline amplifiers
  • Low power consumption
  • Reduces overall solution CAPEX and OPEX
